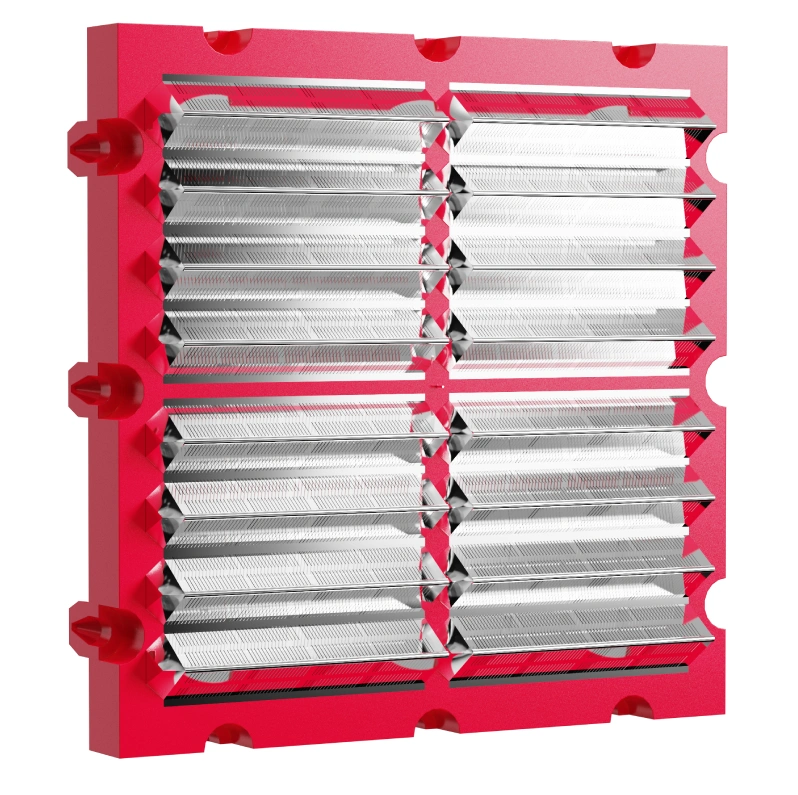

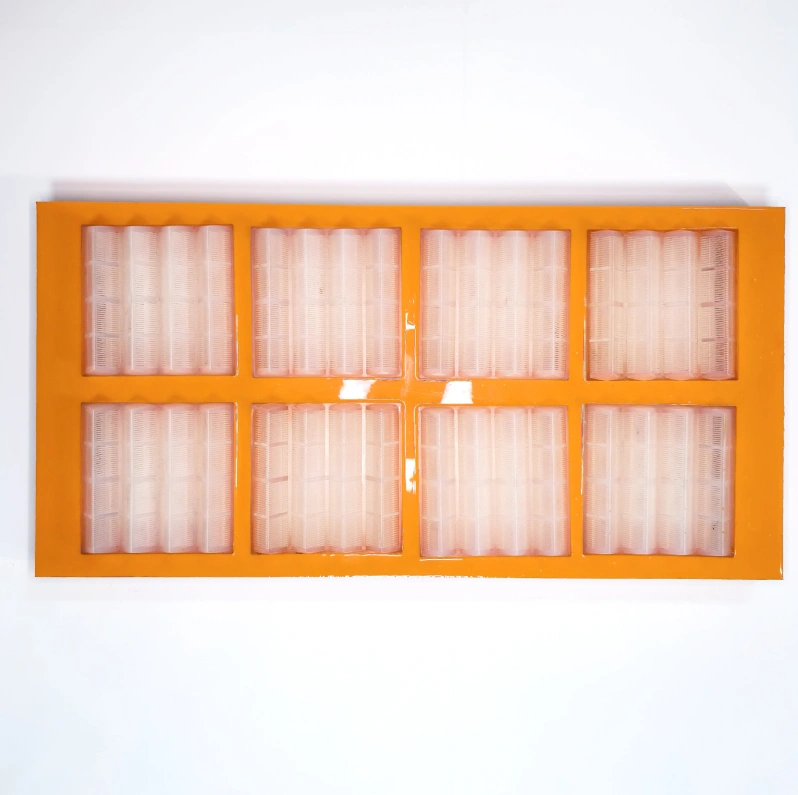

V-Shaped Screen Plate
The V-Shaped Screen Plate features a “narrow top, wide bottom” bell-shaped hole design achieving over 50% open area. Two-point particle contact and a smooth surface minimize clogging, ideal for water treatment, chemical reactors, and food filtration.
Product Detail
The V-Shaped Screen Plate breaks through the traditional 30% open area limitation of conventional perforated plates with its innovative “narrow top, wide bottom” bell-shaped hole structure and high open area design.
By optimizing screen bar dimensions and gaps, the open area ratio can reach over 50%, significantly increasing sieving throughput.
The unique profile allows particles to form only two-point contact with the screen bars, dramatically reducing friction and adhesion points that cause clogging.
The smooth screen surface further enhances material flow, preventing particle build-up.
V-shaped blocks are securely bonded to the polyurethane frame, creating a composite structure that delivers both filtration precision and mechanical strength.
This design ensures long-term dimensional stability under continuous operation, making it suitable for applications requiring high screening smoothness and accuracy.
Industry Applications

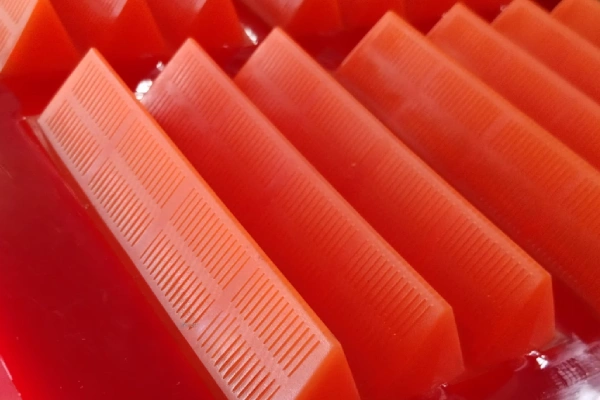

Water & Wastewater Treatment
Ideal for sludge dewatering and solids removal, achieving high flow rates with over 50% open area while minimizing clogging from fibrous or sticky particles.
Chemical Processing
Suitable for chemical reactor support screens and catalyst separation, providing corrosion resistance, structural stability, and high-precision filtration.

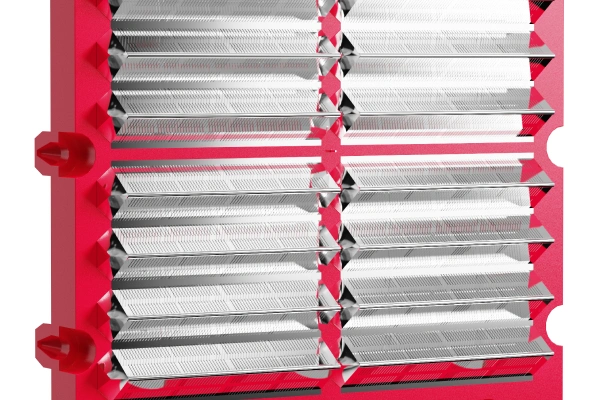

Food & Beverage Filtration
Perfect for food processing applications like juice clarification, starch separation, and ingredient screening, meeting hygiene standards with a smooth, easy-to-clean surface.
FAQ
How does the V-Shaped design achieve over 50% open area?
Traditional perforated plates are limited to approximately 30% open area because round holes require sufficient material between them for structural integrity. The V-Shaped design uses a “narrow top, wide bottom” bell-shaped slot that maximizes open space while maintaining strength through the V-shaped profile and polyurethane bonding. This innovative geometry allows open area ratios to exceed 50% without compromising structural stability.
What makes this screen plate resistant to clogging?
Two key factors: First, particles make only two-point contact with the V-shaped screen bars, unlike traditional screens where particles contact multiple surfaces. Second, the smooth polyurethane surface reduces friction and adhesion. These features prevent particles from wedging into the openings, making the V-Shaped screen plate particularly effective for sticky, fibrous, or irregular materials that frequently clog conventional screens.
Can this screen plate withstand high temperatures?
The polyurethane frame is suitable for temperatures up to approximately 80°C (176°F). For higher temperature applications, please consult our technical team for alternative material options. The stainless steel V-shaped profile itself can withstand higher temperatures, but the polyurethane bonding may be affected by extreme heat.
How does the V-Shaped screen plate compare to wedge wire screens?
Both use V-shaped profiles, but the V-Shaped Screen Plate offers two advantages: First, the polyurethane frame reduces vibration and noise compared to all-metal wedge wire screens. Second, the higher open area (50%+ vs. typical wedge wire’s 30-40%) provides greater throughput. However, wedge wire screens may be preferred for extremely high-temperature or heavy-impact applications.
What maintenance is required for long-term performance?
Minimal maintenance is required. Periodic inspection for wear or damage to the screen surface is recommended. The smooth, non-stick surface resists material build-up, so cleaning is typically quick and easy with water or air blow-off. The polyurethane frame requires no special maintenance and will not corrode like all-metal frames in wet or chemical environments.
